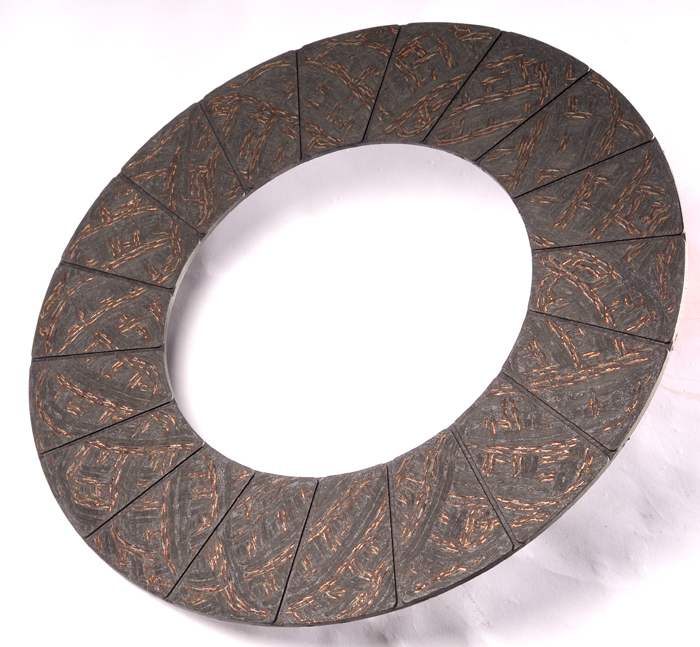

DR407A


DR407A is non-asbestos clutch facing which adopts refined glass fiber, imported composite fiber material with heat resistant properties, high grade copper to be composite yarns. And then added high-temperature resistance resin, imported anti-wear agents, lubricants, and high quality anti-wear and friction resistant regulating agents

This product has high mechanical strength, higher strength of violent anti-rotary, especially reflects stability in connecting and disconnecting, and stable friction coefficient, low wear rate, and perfect properties in wear and friction.





Description

Uni

DR407A

Specific Data

Asbestos

-

N/A

Lead

-

N/A

Density

g/cm3

1.85+-0.1

Hardness

HRL

70-90

Bending Strength

N/MM3

≥50

Maximum Strain

103mm/mm

≥15

Burst Test
210*134*3.5规格

Normal

Rmp

≥12000

250℃

Rmp

≥10000

Coefficient（0.49MPA）
DMS Test

100℃

η

0.42

150℃

 η

0.43

200℃

 η

0.41

250℃

 η

0.40

300℃

 η

0.43

320℃

 η

0.36

Wear rate（0.49MPA）
DMS Test

100℃

10-7

≤0.20

150℃

10-7

≤0.25

200℃

10-7

≤0.30

250℃

10-7

≤0.35

300℃

10-7

≤0.40
